How to replace a cartridge in a thermostatic freestanding tub filler

  1. Last updated
  2. Save as PDF



This article explains step-by-step how to replace a coaxial cartridge in a freestanding tub filler model XX39 or XX37.
Preparation:

Important: Turn off the water supply to the tap before starting. This faucet is not equipped with shut-off valves, so you'll need to turn off the main water supply to the house. Then open the faucet again to empty it of residual water. Failure to do so could result in flooding or injury.

  • Recommended tools: 2.5mm allen key, adjustable wrench. Cleaning could require white vinegar and a soft brush.
Instructions:

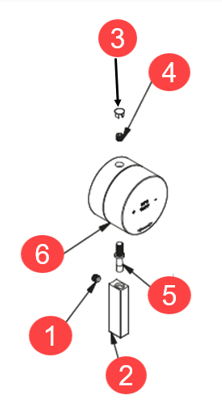

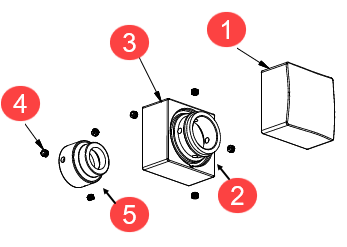

Step 1 - Identify and disassemble handles

Identify


  • Volume handle : Lever
  • Temperature handle : Lever
  • Exposed screw cap : Yes

Disassemble




Identify


  • Volume handle : Lever
  • Temperature handle : Textured dial
  •  Exposed screw cap : Yes

Disassemble


Identify


  • Volume handle : Lever
  • Temperature handle : Knob
  • Exposed screw cap : Yes

Disassemble


Disassemble


Identify

clipboard_ebef0f11e4cbd0a0a9210629e3cf4b418.pngclipboard_e43410424035913ddf89cda1837494090.png

  • Volume handle : Lever, knob or cross
  • Temperature handle : Knob
  • Exposed screw cap: No

Tip: To Remove the temperature knob:

a) Press

b) Lift


Disassemble


Disassemble


Disassemble


Disassemble

Step 2: Unscrew the retaining nut

Models with O-ring

clipboard_e4146d91377d3b46173cb84bbe9a9f547.pngclipboard_ed8992ca250497cbdcae6d39c09e76752.png

O-ring locations should they fall out. Hold in place with a little plumber's grease

Models without O-ring

clipboard_e84d6555bb7ff306fd7476762a1df25de.pngclipboard_ece3be2057ca6612fb037d9e68d93d3ae.png


Step 3: Pull out cartridge, clean and install new cartridge


Model XX37



Inspect cartridge seat, remove debris and/or blue gasket and, if necessary, clean with a 1/2 vinegar 1/2 water solution and a soft bristle brush.


Insert the new cartridge ensuring that the 2 position pins are aligned with the 2 position holes on the seat




Step 4: Reassemble
Screw the retaining nut back on and reassemble the handles in reverse order.
