Body Jet Loop Configuration

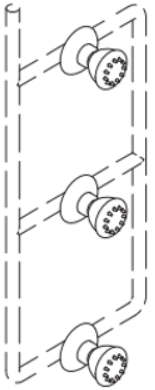

Image showing how to loop body jets to have an even water flow between them. This is done when you have 3 or more on the same feed,

Instructions:

Supply Type A or B:

Type A- Rear supply



Type B- Top supply (special rough)
