Tub Spout Guide:80 and 81

Last updated
Save as PDF

Model List:

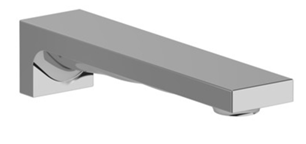

Tub Spouts with and without diverter

Model	Image	Specification & Information
AA80		Description: No Diverter Wall-mount tub spout 1/2" copper slip fit inlet Finishes: C,BN,BG, BK Dimensions: Overall Length: 8 7/8" / 225 mm Wall to spout C/L: 8 1/4" / 210 mm Width at Base: 2 7/8"/ 73 mm
ATOP80 TATOP80		Description: No Diverter Open wall-mount tub spout 1/2" inlet male NPT Special rough included- Must be ordered at the same time as the valve rough TATOP80- Trim Only Finishes: C,BN,PN Dimensions: Overall Length: 8 1/8" / 208 mm Wall to spout C/L: 7 7/8" / 201 mm Width at Base: 2 3/8"/ 60 mm
AU80		Description: No Diverter Wall-mount tub spout 1/2" copper slip fit inlet Finishes: C,BN,BG,BK,PN Dimensions: Overall Length: 8 3/4" / 221 mm Wall to spout C/L: 8 1/8" / 206 mm Width at Base: 2 1/4"/ 58 mm
BD81		Descriptions: Diverter 1/2" inlet female NPT Finishes: C,BN,PN Dimensions: Overall Length: 6 1/4" / 160 mm Wall to spout C/L: 5 5/8" / 143 mm Width at Base: N/A
BM80		Descriptions: Diverter 1/2" inlet female NPT Brass Finishes: C,BN,PN Dimensions: Overall Length: 7 7/8" / 201 mm Wall to spout C/L: 7 1/2" / 192 mm Width at Base: 2" / 50 mm
BQ80		Descriptions: No Diverter 1/2" inlet female NPT Brass Finishes: C,BN Dimensions: Overall Length: 7 7/8" / 201 mm Wall to spout C/L: 7 1/2" / 192 mm Width at Base: 2" / 50 mm
BR80		Descriptions: No Diverter 1/2" copper slip fit inlet Finishes: C,G,BN Dimensions: Overall Length: 5 1/4" /133 mm Wall to spout C/L: 4 3/4" / 121 mm Width at Base: 2 1/2" / 65 mm
BR81		Descriptions: Diverter 1/2" copper slip fit inlet Finishes: C,CG,G,BN Dimensions: Overall Length: 5 1/4" /133 mm Wall to spout C/L: 4 3/4" / 121 mm Width at Base: 2 1/2" / 65 mm
DJ80		Descriptions: No Diverter 1/2" copper slip fit inlet Flow Diffuser Finishes: C Dimensions: Overall Length: 8 7/8" / 225 mm Wall to spout C/L: 8" / 203 mm Width at Base: 2 3/8" / 60 mm
ED80		Descriptions: No Diverter 1/2" copper slip fit inlet Finishes: C,BN,PN,BK Dimensions: Overall Length: 7 3/8" / 189 mm Wall to spout C/L: 6 7/8" / 176 mm Width at Base: 2" / 52 mm
EF80		Descriptions: No Diverter 1/2" copper slip fit inlet Finishes: C,BN,PN,BK Dimensions: Overall Length: 8 3/8" / 212 mm Wall to spout C/L: 7 3/4" / 197 mm Width at Base: 2 1/8" / 55 mm
EQ80		Descriptions: No Diverter 1/2" copper slip fit inlet Finishes: C,BN,BK Dimensions: Overall Length: 8 7/8" / 227 mm Wall to spout C/L: 7 7/8" / 200 mm Width at Base: 2 1/2" x 1 5/8" / 65 mm x 40 mm
FR80		Descriptions: No Diverter 1/2" copper slip fit inlet Finishes: C,BN,BK Dimensions: Overall Length: 9 1/8" / 232 mm Wall to spout C/L: 8 1/4" / 211 mm Width at Base: 2 3/8" x 2" / 60 mm x 50 mm
GS80		Descriptions: No Diverter 1/2" copper slip fit inlet Finishes: C,BN,BK Dimensions: Overall Length: 8 5/8" / 220 mm Wall to spout C/L: 7 3/4" / 211 mm
MF80		Descriptions: No Diverter 1/2" copper slip fit inlet Finishes: C,BN,BK,PN,SF,US4 Dimensions: Overall Length: 9 1/4" / 235mm Wall to spout C/L: 8 3/8" / 212mm Width at Base: 2 3/8" / 60mm
MMSQ80		Description: No Diverter Wall-mount tub spout 1/2" inlet male NPT Finishes: C,BN,BG,BK,PN Dimensions: Overall Length: 9 5/8" / 246 mm Wall to spout C/L: 9 1/8" / 231 mm Width at Base: 2 3/8"/ 61 mm
MM80		Descriptions: No Diverter 1/2" copper slip fit inlet Finishes: C,BN,BK,BG,PN Dimensions: Overall Length: 9 5/8" / 246 mm Wall to spout C/L: 9 1/8" / 231 mm Width at Base: 2 3/8"/ 61 mm
P840		Descriptions: No Diverter 1/2" copper slip fit inlet Finishes: C Overall Length: 5 1/2" / 140mm Width at Base: 2 3/4" /70 mm
P841		Descriptions: Diverter 1/2" copper slip fit inlet Finishes: C Dimensions: Overall Length: 5 1/2" / 140 mm Wall to spout C/L: 4 7/8" / 125 mm Width at Base: 2 3/4"/ 70 mm
847		Descriptions: No Diverter 1/2" copper slip fit inlet Finishes: C Dimensions: Overall Length:8 3/4" / 223 mm Wall to spout C/L: 7 7/8"/ 200 mm Width at Base: 2"/ 50 mm
NB80		Descriptions: No Diverter 1/2" copper slip fit inlet Finishes: C Dimensions: Overall Length:9" / 228 mm Wall to spout C/L: 8 1/8"/ 208 mm Width at Base: 1 1/2"/ 66 mm
P850		Descriptions: No Diverter 1/2" copper slip fit inlet Finishes: C Dimensions: Overall Length: 7 7/8" / 200 mm Wall to spout C/L: 7 1/16" / 180 mm
P860		Descriptions: No Diverter 1/2" inlet male NPT Finishes: C Dimensions: Overall Length: 5 15/16" / 150 mm Wall to spout C/L: 4 1/4" / 107 mm
P867		Descriptions: No Diverter 1/2" copper slip fit inlet Finishes: C Dimensions: Overall Length: 8 3/4" / 223 mm Wall to spout C/L: 7 7/8" / 200 mm Width at Base: 2 " / 50 mm
P870		Descriptions: No Diverter 1/2" copper slip fit inlet Flow Diffuser Finishes: C Dimensions: Overall Length: 7 1/4" / 187 mm Wall to spout C/L: 6 3/8" / 162 mm Width at Base: 2 1/2" / 64 mm
P871		Descriptions: Diverter 1/2" copper slip fit inlet Flow Diffuser Finishes: C Dimensions: Overall Length: 7 1/4" / 187 mm Wall to spout C/L: 6 3/8" / 162 mm Width at Base: 2 1/2" / 64 mm
P880		Descriptions: No Diverter 1/2" copper slip fit inlet Finishes: C Dimensions: Overall Length: 5 15/16" / 150 mm Wall to spout C/L: 5 1/2" / 140 mm Width at Base: 2 11/16" / 68 mm
P885		Descriptions: No Diverter 1/2" copper slip fit inlet Finishes: C Dimensions: Overall Length: 8 7/8" / 225 mm Wall to spout C/L: 8" / 202 mm Width at Base: 2 " / 50 mm
P890		Descriptions: No Diverter 1/2" copper slip fit inlet Flow Diffuser Finishes: C Dimensions: Overall Length: 7 1/4" / 184 mm Wall to spout C/L: 6 3/8" / 163 mm Width at Base: 2 1/2 " / 62 mm
P891		Descriptions: Diverter 1/2" copper slip fit inlet Flow Diffuser Finishes: C Dimensions: Overall Length: 7 1/4" / 184 mm Wall to spout C/L: 6 3/8" / 163 mm Width at Base: 2 1/2 " / 62 mm
P980		Descriptions: No Diverter 1/2" copper slip fit inlet Finishes: C,BK,BN Dimensions: Overall Length: 7 1/" / 181 mm Wall to spout C/L: 6 3/8" / 162 mm Width at Base: 2 1/2 " / 64 mm
P981		Descriptions: Diverter 1/2" copper slip fit inlet Finishes: C,BK,BN Dimensions: Overall Length: 7 1/" / 181 mm Wall to spout C/L: 6 3/8" / 162 mm Width at Base: 2 1/2 " / 64 mm
PB80		Descriptions: No Diverter 1/2" copper slip fit inlet Finishes: C.BK,BG Dimensions: Overall Length: 8 5/8" / 220 mm Wall to spout C/L: 8" / 203 mm Width at Base: 2 " / 50 mm
PXTM80		Descriptions: No Diverter 1/2" copper slip fit inlet Finishes: C.BK,BN,BG Dimensions: Overall Length: 8 7/8" / 225 mm Wall to spout C/L: 7 3/4" /197 mm Width at Base: 2 3/8 " /60 mm
PXTQ80		Descriptions: No Diverter 1/2" copper slip fit inlet Finishes: C.BK,BG Dimensions: Overall Length: 8 7/8" / 225 mm Wall to spout C/L: 7 3/4" /197 mm Width at Base: 2 3/8 " /60 mm
R841		Descriptions: Diverter 1/2" copper slip fit inlet Finishes: C
R845		Descriptions: Diverter 1/2" copper slip fit inlet Brass Finishes: C,BN
R847		Descriptions: No Diverter 1/2" copper slip fit inlet Finishes: C.BN Dimensions: Overall Length: 8 3/4" / 223 mm Wall to spout C/L: 7 7/8" / 200 mm Width at Base: 2 " / 50 mm
R865		Descriptions: Diverter 1/2" copper slip fit inlet Brass Finishes: C,BN,PN
R867		Descriptions: No Diverter 1/2" copper slip fit inlet Finishes: C.BG,BK,PN Dimensions: Overall Length: 8 3/4" / 223 mm Wall to spout C/L: 7 7/8" / 200 mm Width at Base: 2 " / 50 mm
R870		Descriptions: No Diverter Flow Diffuser 1/2" copper slip fit inlet Finishes: C.BN,PN Dimensions: Overall Length: 7 1/4" / 184 mm Wall to spout C/L: 6 3/8" / 162mm Width at Base: 2 1/2 " / 64 mm
R871		Descriptions: Diverter Flow Diffuser 1/2" copper slip fit inlet Finishes: C.BN Dimensions: Overall Length: 7 1/4" / 184 mm Wall to spout C/L: 6 3/8" / 162mm Width at Base: 2 1/2 " / 64 mm
R880		Descriptions: No Diverter 1/2" copper slip fit inlet Finishes: C.BN, PN Dimensions: Overall Length: 5 3/4" / 145 mm Wall to spout C/L: 4 5/8" / 118 mm Width at Base: 2 3/4 " / 70 mm
R881		Descriptions: No Diverter 1/2" copper slip fit inlet Finishes: C.BN, PN Dimensions: Overall Length: 5 3/4" / 145 mm Wall to spout C/L: 4 5/8" / 118 mm Width at Base: 2 3/4 " / 70 mm
R885		Descriptions: No Diverter 1/2" copper slip fit inlet Finishes: C.BN, PN Dimensions: Overall Length: 8 7/8" / 225 mm Wall to spout C/L: 8" / 202 mm Width at Base :2 " / 50 mm
R890		Descriptions: No Diverter Flow Diffuser 1/2" copper slip fit inlet Finishes: C Dimensions: Overall Length: 7 1/4" / 184 mm Wall to spout C/L: 6 3/8" / 163 mm Width at Base 2 1/2 " x 2 3/4" / 62 mm x 71 mm
R891		Descriptions: Diverter Flow Diffuser 1/2" copper slip fit inlet Finishes: C,PN,BN,BK Dimensions: Overall Length: 7 1/4" / 184 mm Wall to spout C/L: 6 3/8" / 163 mm Width at Base 2 1/2 " x 2 3/4" / 62 mm x 71 mm
RF80		Descriptions: Dimensions: Overall Length: 9 1/8" / 231mm Wall to spout C/L: 8" / 203 mm Width at Base 2" / 50 mm
RH80		Descriptions: Rough Only ½" inlet male NPT Test Cap Dimensions: Overall Length: 4 3/8" / 110 mm
SA80 TSA80		Descriptions: No Diverter 1/2" inlet male NPT Special rough included Must be ordered at the same time as the valve rough TSA80-Trim Only Finishes: C,PN Dimensions: Overall Length: 7 5/8" / 194 mm Width at Base: 3" X 2" / 75 MM X 50 MM
TQ80		Descriptions: No Diverter 1/2" inlet male NPT Finishes: C,BN Dimensions: Overall Length: 7 5/8" / 194 mm Wall to spout C/L: 6 3/4" / 170 mm Width at Base 2 3/8" / 60 mm
TQ81		Descriptions: Diverter 1/2" inlet male NPT Finishes: C,BN Dimensions: Overall Length: 7 5/8" / 194 mm Wall to spout C/L: 6 3/4" / 170 mm Width at Base 2 3/8" / 60 mm
VY80		Descriptions: No Diverter 1/2" inlet male NPT Finishes: C,BN Dimensions: Overall Length: 9 1/4" / 235 mm Wall to spout C/L: 8 5/8"" / 220 mm Width at Base 2 3/4" X 2 3/8" / 70 mm X 60 MM
ZO80		Descriptions: No Diverter 1/2" copper slip fit inlet Finishes: C,BN,PN Dimensions: Overall Length: 9 1/4" / 235 mm Wall to spout C/L: 8 5/8"" / 220 mm Width at Base 2 3/4" X 2" / 70 mm X 50 MM
ZOOP80 TZOOP80		Descriptions: No Diverter Special rough included 1/2" inlet male NPT Must be ordered at the same time as the valve rough TZOOP80-Trim Only Brass Finishes: C,BN Dimensions: Overall Length: 8 1/8" / 205 mm Wall to spout C/L: 8 5/8"" / 220 mm Width at Base 3 1/8"" X2" / 80 mm X 50 MM
